Tilt Wind System for Flat Roof

Project Site:

Flat Roof

Slope of roof: Up to 60°
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standard: AS/NZS 1170, MCS, JIS &SGS
Material:

Stainless steel 304, Al6005-T5

Product Features

1.  Tilt wind flat roof mounting structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Only 2-3 kinds of components and no more than two kinds of tools in whole system fixation

4. All flat roof components are made with high quality aluminum & stainless steel

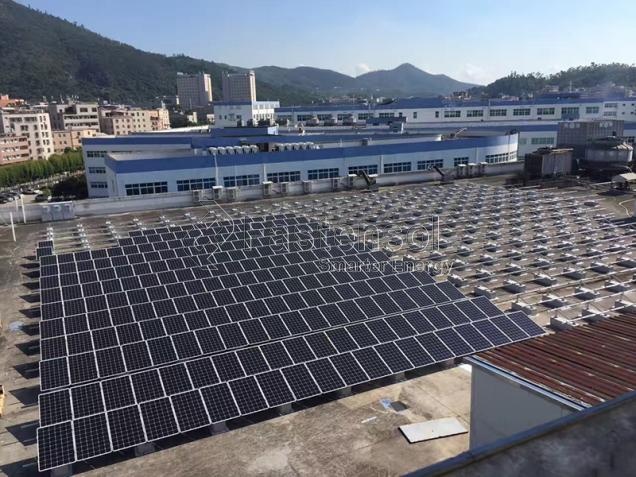

System Overview


Tilt wind flat roof mounting structure

Key Components

Rail in Customized Length
Rail Clamp
Mid Clamps
End Clamps
Tripod Support Kit

Rail in Customized Length

Rail Clamp

Mid Clamps

End Clamps

 Tripod Support Kit
