Flat Roof Ballasted Mount

Project Site:

Flat Roof

Tilt type: Concrete or Gravel
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape
Standard: AS/NZS 1170, MCS, JIS &SGS
Material:

Stainless steel 304, Al6005-T5

     Product Features

1. Flat roof ballasted mount structures are widely used for both crystalline and thin film modules

2. Easy & quick installation

3. Few components and highly assembled

4. All flat roof components are made with high quality aluminum & stainless steel

5. The arrays are connected together

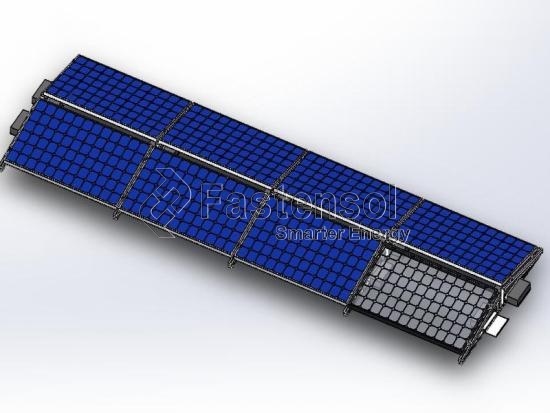

     System Overview

Flat roof ballasted mount structures


     Key Components

Triangle Bracket
Mid Clamps
End Clamps
Ballasted Pan

Triangle Bracket

Mid Clamps

End Clamps

Ballasted Pan
