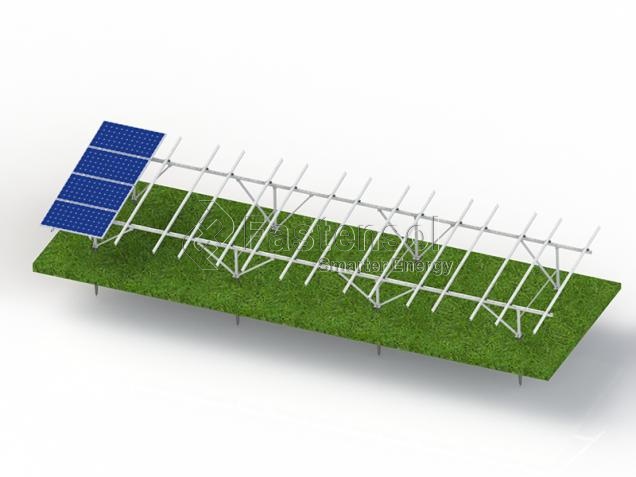

S Terrain Ground Mounting rack (ground screw)

Project Site: Free open terrain, flat roofs
Wind Load: 88m/s
Snow Load: 2.0kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standards: AS/NZS 1170, MCS, JIS &SGS

     Product Features

1. S terrain ground mounting rack are widely used for both crystalline and thin film module

2. Click-in Clamps Easy & quick installation

3. Few Aluminum components and no more than two kinds of tools in whole system fixation

4. All S terrain ground mounting rack components are made with high quality aluminum & stainless steel

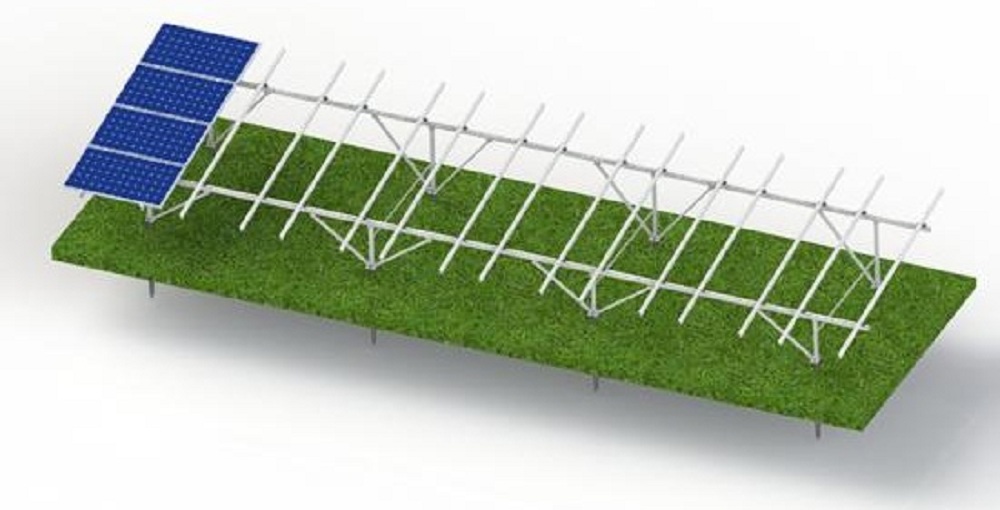

     System Overview

     Key Components

Beam
Rail
Leg
Ground Screw
Base
Beam Clamp

Girder

Rail(purlin)

Strut

Ground Screw End Clamp

Mid Clamp
