Tin Roof Mounting System

Project Site:

corrugated or trapezoidal sheet metal roof

Slope of roof: Up to 60°
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standard: AS/NZS 1170, MCS, JIS &SGS
Material:

Stainless steel 304, Al6005-T5

     Product Features

1. Pitched Tin Roof Mounting Structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Only 3-4 kinds of components and no more than two kinds of tools in whole system fixation

4. All pitched roof components are made with high quality aluminum & stainless steel

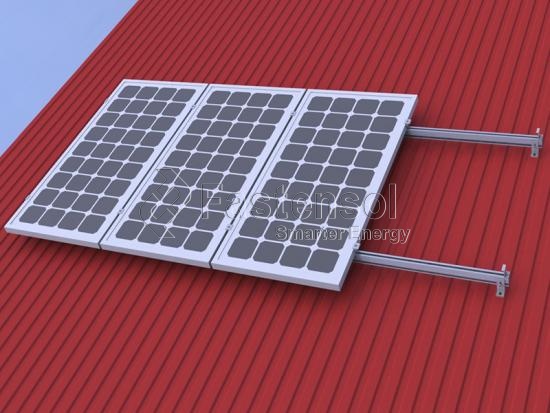

     System Overview

Pitched Tin Roof Mounting Structures


     Key Components

Rail in Customized Length
Rail Connectors

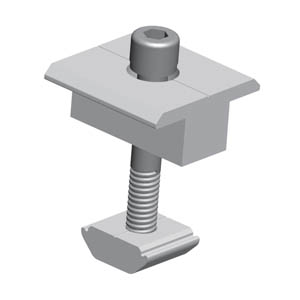

Mid Clamps
End Clamps
L Foot

Rail in Customized Length

Rail Connectors

Mid Clamps

End Clamps

L Foot
