Railless Mounting Solution for Pitched Metal Roof

Project Site: Popular trapezoidal and IBR sheets
Slope of roof: Up to 60°
Max Building Height: Up to 20m
Wind Load: 88m/s
Snow Load: 1.4kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standard: AS/NZS 1170, MCS, JIS &SGS
Material: Stainless steel 304, Al6005-T5

     Product Features

1. Pitched railless tin roof mounting structures are widely used for both crystalline and thin film module

2. Easy & quick installation

3. Only 3 kinds of components in whole system fixation

4. All pitched roof components are made with high quality aluminum & stainless steel

5. The trapezoidal rib should be more than 20mm

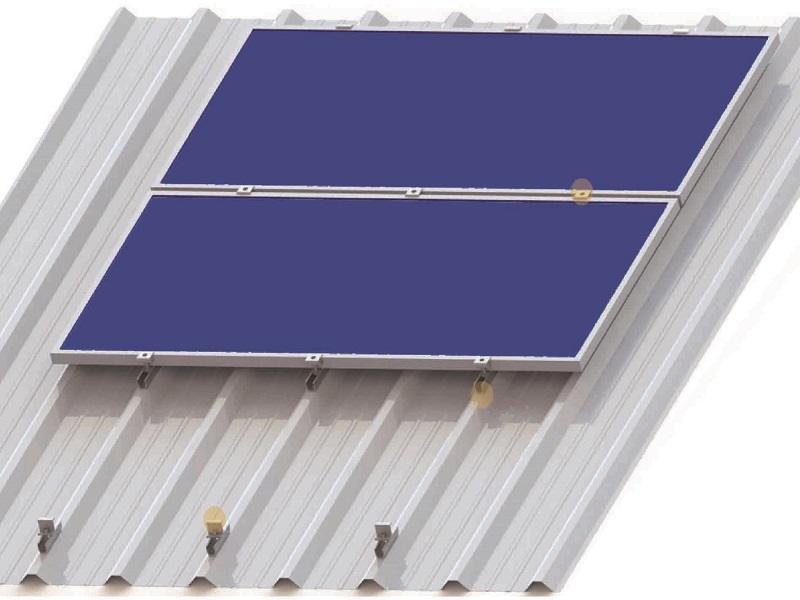

     System Overview

Pitched railless tin roof mounting structures


     Key Components

Mini Rail
Mid Clamp
End Clamp
Mini Rail Mid Clamp End Clamp
MR140 MC-GS EC-GS
