S Pile Ground Mounting rack

Project Site: Free open terrain
Wind Load: 88m/s
Snow Load: 2.0kn/
Applicable Module: Frame / frameless, crystalline/ thin film module
Module Orientation: Landscape or Portrait
Standards: AS/NZS 1170, MCS, JIS &SGS

     Product Features

1. S pile ground mounting rack are widely used for both crystalline and thin film module

2. Click-in Clamps Easy & quick installation

3. Few Aluminum components and no more than two kinds of tools in whole system fixation

4. All S pile ground mounting rack components are made with high quality aluminum & stainless steel


    System Overview

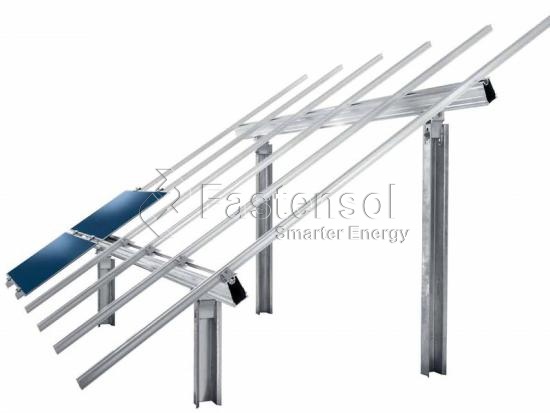

S pile ground mounting rack


     Key Components

Beam
Rail
Pile
Mid Clamp
End Clamp
H Fitting

Girder

Rail(purlin)

Pile

Mid Clamp End Clamp

H Fitting
